| Product module | 3500/44M 176449-03 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.82KG |
| Production year | 2024 |
| country of origin | USA |

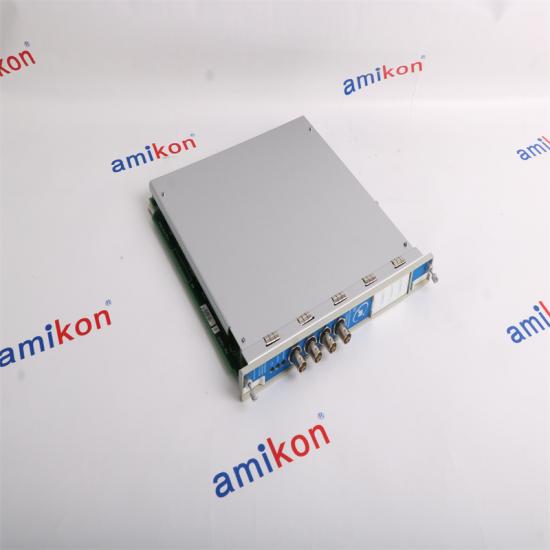

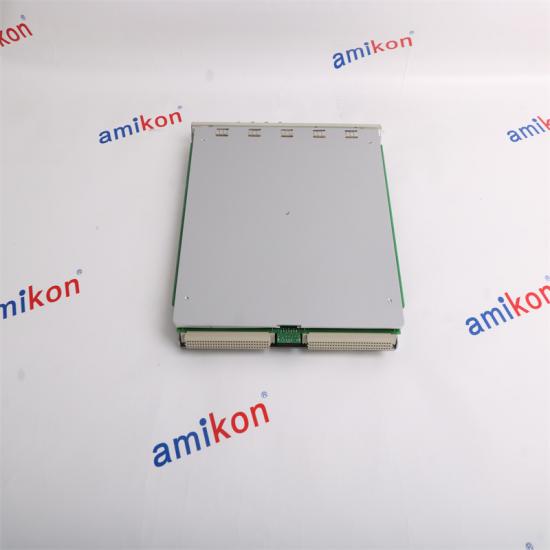

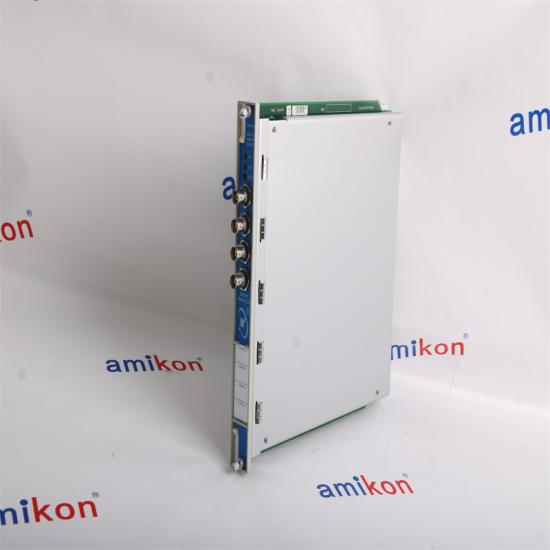

3500/44M 176449-03 Vibration Monitor Bently Nevada
overview
The Bently Nevada 3500/44M 176449-03 Vibration Monitor is a sophisticated device designed to provide precise and reliable
monitoring of machinery vibration levels. As part of the 3500 Series Machinery Protection System, this monitor is engineered
to detect and analyze vibrations in rotating machinery, helping to ensure optimal performance and early detection of potential
issues. The 3500/44M model offers advanced vibration measurement capabilities, including high sensitivity and accuracy,
which are essential for identifying abnormal vibration patterns that could indicate mechanical problems. Its robust construction
and comprehensive diagnostic features make it suitable for use in harsh industrial environments, where it helps prevent equipment
failures and reduce maintenance costs. The 176449-03 variant is known for its reliability and integration capabilities with other
3500 Series modules, providing a seamless solution for comprehensive machinery health monitoring.
|
Contact us Email : sales@amikon.cn |
Specifications
| 3500/44M 176449-03 Vibration Monitor |
|
| Direct signal | 4 Hz to 30 kHz, -3 dB |
| Low-pass corner | 200 Hz (-3 dB) |
| Low-pass rolloff | 10-pole 200 dB per decade 60 dB per octave |
| High-pass corner | 25, 75 or 100 Hz (-3 dB) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | 23 Vdc nominal at 43 mA max |
| Voltage Compliance | 0 to +12 Vdc range across load Load resistance is 0 to 600 Ω |
Graphs and Figures
 |

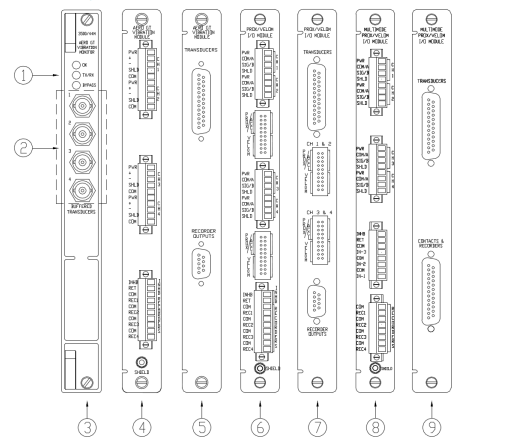

1. Status LEDs 2. Buffered Transducer Outputs 3. 3500/44M Aeroderivitive GT Vibration Monitor Main Module 4. Aero GT I/O Module with Internal Terminations 5. Aero GT I/O Module with External Terminations 6. Prox/Velom I/O, Internal Terminations 7. Prox/Velom I/O, External Terminations 8. Multimode Prox/Velom I/O, Internal Terminations 9. Multimode Prox/Velom I/O, External Terminations |
Product detailed description
The 3500/44M 176449-03 Vibration Monitor is engineered to deliver high-performance vibration analysis, essential for maintaining the health and reliability of critical machinery.
It is designed to measure various types of vibrations, including displacement, velocity, and acceleration, with high accuracy and sensitivity. This capability allows for comprehensive
monitoring of machine condition and early detection of potential problems.
a wide range of vibration frequencies and amplitudes, providing detailed insights into the mechanical condition of rotating equipment. This helps in identifying abnormal vibration
patterns that may indicate issues such as misalignment, imbalance, or bearing wear.
machinery protection and monitoring system. This integration allows for unified data collection and analysis, enhancing the overall effectiveness of the monitoring system.
thresholds and indicators that alert users to potential issues, allowing for prompt intervention and maintenance.
long-term durability and reliable performance. It can operate effectively in harsh conditions, including high temperatures, vibrations, and contaminants.
critical equipment such as turbines, compressors, pumps, and motors. By providing accurate and real-time vibration data, the monitor helps in implementing predictive maintenance strategies, reducing
unplanned downtime, and extending equipment lifespan.
guidance for installation, calibration, and troubleshooting, maximizing the effectiveness of the monitoring system.
In summary, the Bently Nevada 3500/44M 176449-03 Vibration Monitor is a high-performance device that plays a crucial role in machinery health monitoring. Its advanced measurement
capabilities, integration with the 3500 Series, real-time data visualization, and robust construction make it an essential tool for maintaining the reliability and efficiency of industrial equipment.
Recommended model
| Bently Nevada | 330709-000-070-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330709-000-060-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330709-000-050-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330708-00-10-90-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330705-02-18-90-02-00 | 3300 XL 11 mm Reverse Mount Probes |
| Bently Nevada | 330705-02-18-10-02-00 | 3300 XL 11 mm Reverse Mount Probes |
| Bently Nevada | 330703-050-120-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330703-000-100-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330703-000-080-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330703-000-070-10-02-00 | 3300 XL 11 mm Proximity Probes |
If you want to know more, please feel free to contact us via email: sales@amikon.cn
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
