| Product module | 990-05-XX-03-CN 104M6732-01 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.18KG |
| Production year | 2024 |
| country of origin | USA |

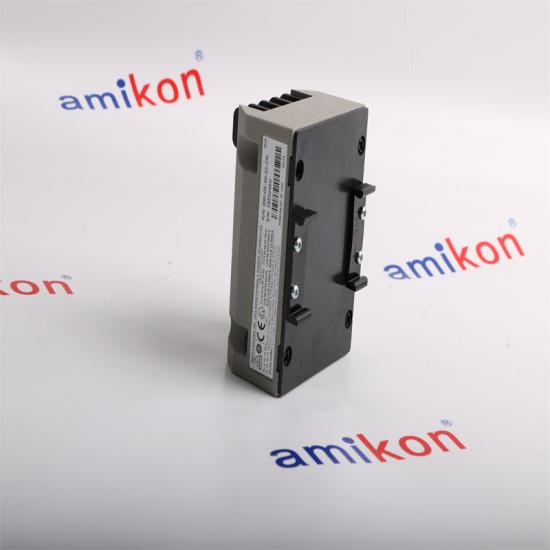

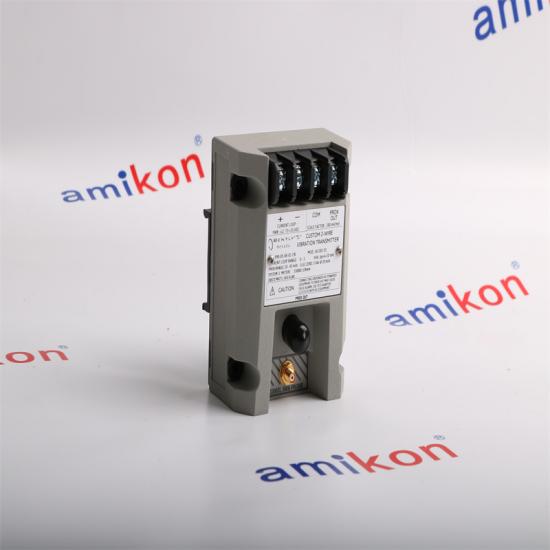

Bently Nevada 990-05-XX-03-CN 104M6732-01 Vibration Transmitter
Discription
| Part number：990-05-XX-03-CN 104M6732-01 |
|
Power ：Requires +12 to +35 Vdc input at the transmitter terminal |
| 4 to 20 mA signal output ：4 to 20 mAdc over specified fullscale range in 2-wire configuration |
|
Maximum loop resistance ：1,000 Ω including cable at 35 Vdc
|
|
Current limiting： 23 mA typical.
|
|
Zero and span ：Non-interacting external adjustments |
| Frequency response：5 Hz to 6,000 Hz +0, 3 dB |
| Minimum target size ：9.5 mm (0.375 in) diameter |
The 990-05-XX-03-CN 104M6732-01 Vibration Transmitter is an advanced device designed for continuous
monitoring of vibration levels in industrial equipment, helping to detect and prevent machinery failures. It is
engineered to convert vibration signals from sensors into standard output signals, which can be easily integrated
into control systems or condition monitoring systems. This vibration transmitter provides real-time data on machinery health,
enabling operators to detect early signs of wear, imbalance, misalignment, and other mechanical issues. The device is designed
for reliable performance in harsh industrial environments and is suitable for use in applications such as motors, pumps, compressors,
and turbines. With its robust construction and high accuracy, the 104M6732-01 Vibration Transmitter ensures
accurate vibration monitoring and contributes to increased equipment reliability and uptime.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 990-05-XX-03-CN 104M6732-01
|
What is the 990-05-XX-03-CN 104M6732-01 Vibration Transmitter? |
|
The 990-05-XX-03-CN 104M6732-01 Vibration Transmitter is a device designed for monitoring vibration levels in industrial equipment. It converts vibration sensor signals into standard output signals, allowing easy integration with control and monitoring systems. |
| What applications is the vibration transmitter suitable for? |
| The vibration transmitter is widely used in applications such as motors, pumps, compressors, turbines, and other machinery. It helps detect mechanical faults like wear, imbalance, and misalignment in equipment. |
| How does the 990-05-XX-03-CN 104M6732-01 Vibration Transmitter work? |
|
The vibration transmitter works by receiving signals from vibration sensors and converting them into standard current or voltage output signals, allowing operators to monitor the health of the equipment in real-time. |
| What is the output signal of the vibration transmitter? |
|
The 990-05-XX-03-CN 104M6732-01 Vibration Transmitter typically provides a 4-20 mA current output signal or a 0-10 V voltage output signal, which can be directly input into monitoring systems. |
More Recommend Items
| BENTLY NEVADA | 330103-00-05-20-02-CN | 330105-02-12-10-02-00 |
| BENTLY NEVADA | 330103-05-15-05-02-00 | 330103-01-08-10-02-00 |
| BENTLY NEVADA | 10026-02-12-05-02 | 330930-060-05-05 |
| BENTLY NEVADA | 10030-05-30-05-02 | 330105-02-12-05-02-05 |
| BENTLY NEVADA | 330194-17-25-15-00 | 3500/22M 138607-01 |
| BENTLY NEVADA | 88843-04 | 3500/15 127610-01 |
| BENTLY NEVADA | 88984-02 | 3500/25 149369-01 |
| BENTLY NEVADA | 330103-00-06-10-01-00 | 3500/92 136180-01 |
| BENTLY NEVADA | 16710-12 | 3500/44M 176449-03 |
| BENTLY NEVADA | 330103-01-06-05-02-00 | 3500/32M 149986-02 |
| BENTLY NEVADA | 330103-10-20-05-02-CN | 3500/46M 176449-06 |
| BENTLY NEVADA | 900800XL-090-03-01 | 3500/40M 176449-01 |
| BENTLY NEVADA | 330500-03-00 | 3500/42M 176449-02 |
| BENTLY NEVADA | 330905-08-13-10-02-05 | 3500/32 125712-01 |
Email : sales@amikon.cn
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
