| Product module | 369-HI-R-0-0-0-0-E |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 3.56KG |
| Production year | 2024 |
| country of origin | USA |

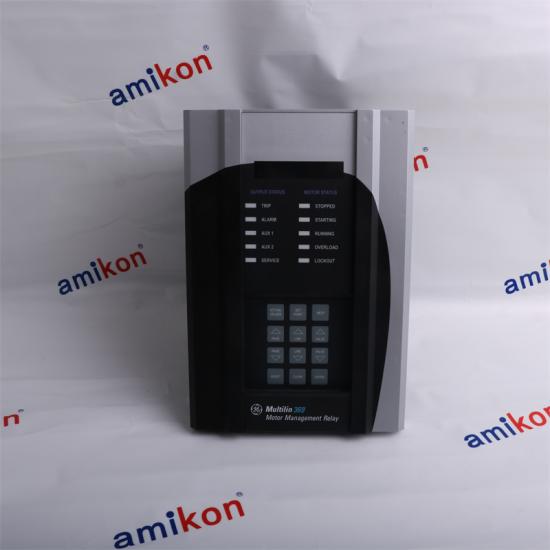

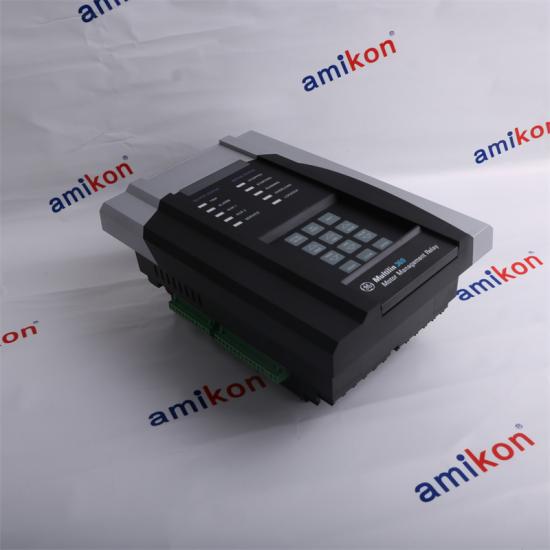

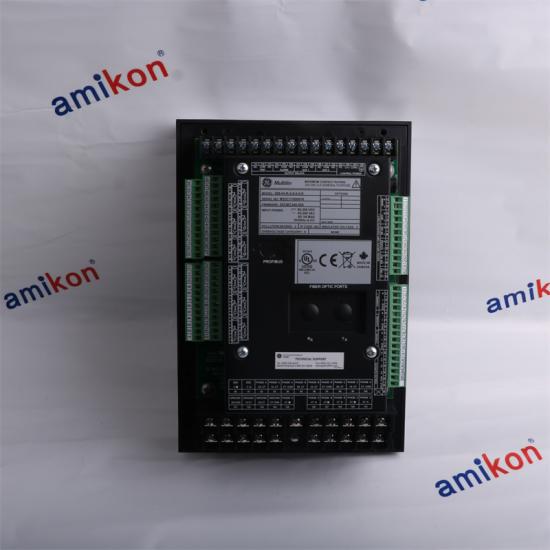

GE 369-HI-R-0-0-0-0-E Motor Protection Relay
Specifications
| 369=Base unit (no RTD) |
| HI= 50-300 VDC / 60-265 VAC control power |
| R=Optional 12 RTD inputs (built-in) |
| 0= No optional metering or backspin detection |
| 0=No optional Fiber Optic Port |
| 0=No optional protocol interfaces |
| 0=No Harsh environment option |
| E= Enhanced diagnostics with Enhanced faceplate |
| Dimensions:20.5x12.5x29.6cm |
Functional Description
The 369-HI-R-0-0-0-0-E relay is capable of displaying important metering functions, including phase voltages, kilowatts, kvars,
power factor, frequency and MWhr. In addition, undervoltage and low power factor alarm and trip levels are
field programmable. The communications interface include one front RS232 port and three independent rear RS485
ports with supporting PC software, thus allowing easy setpoint programming, local retrieval of information
and flexibility in communication with SCADA and engineering workstations.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
| What is the 369-HI-R-0-0-0-0-E Motor Protection Relay used for? |
| The 369-HI-R-0-0-0-0-E Motor Protection Relay is used to protect electric motors from overloads, short circuits, and other electrical faults, ensuring reliable and safe motor operation. |
| What types of faults can the 369-HI-R relay detect? |
| It can detect and protect against various faults including overload conditions, phase loss, phase imbalance, short circuits, and ground faults. |
| What are the key features of the 369-HI-R relay? |
| Key features include adjustable trip settings, real-time fault monitoring, built-in diagnostics, and user-friendly interfaces for configuration and monitoring. |
| How is the 369-HI-R relay configured? |
| The relay is configured using its onboard controls or a connected PC with configuration software, allowing users to set parameters like trip points and time delays. |
| What is the power supply requirement for the 369-HI-R relay? |
| The relay typically operates on a standard AC or DC power supply, but specific voltage and current requirements should be verified from the product specifications. |
