| Product module | IC694MDL930 |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.3KG |
| Production year | 2024 |
| country of origin | USA |

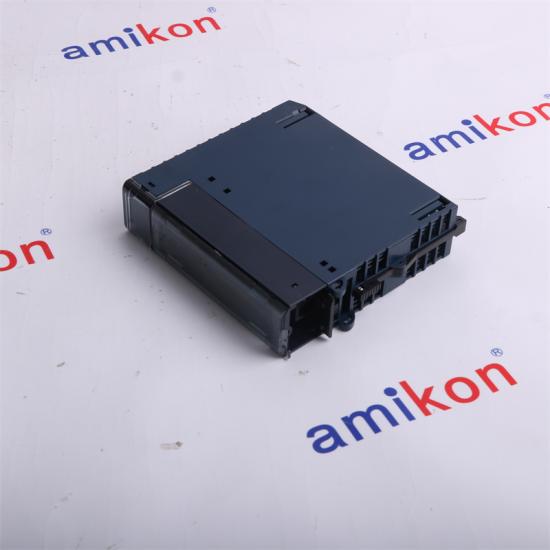

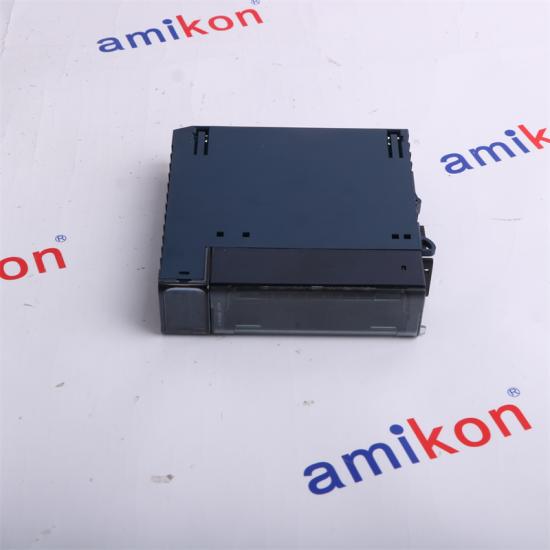

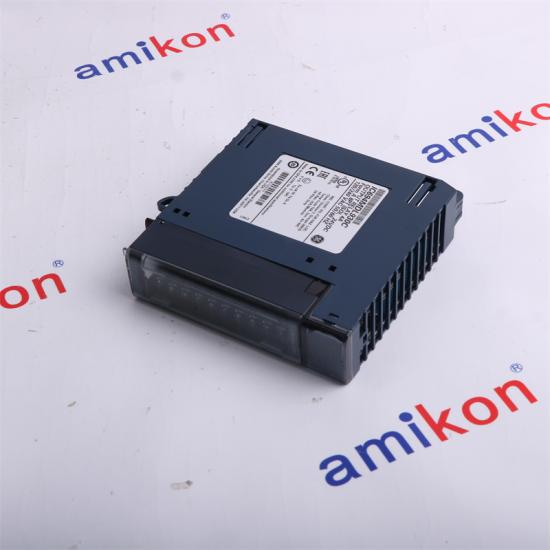

GE IC694MDL930 Voltage Output module
Specifications
| Rated Voltage | 24 volts DC, 120/240 VAC (nominal - see the following table for exceptions) |
| Operating Voltage | 5 to 30 volts DC |
| 5 to 250 VAC, 50/60 Hz | |
| Outputs per Module | Eight isolated outputs |
| Isolation: | 18 VDC to 30 VDC |
| Field to Backplane and to Frame Ground | 250 VAC continuous; 1500 VAC for 1 minute |
| Point to Point | 250 VAC continuous; 1500 VAC for 1 minute |
| Minimum Load |
10mA |
| Maximum Inrush |
5 Amps |
| Dimensions | 3.5x13.2x13.5cm |
Functional Description
The IC694MDL930 Series 90*-30 and PACSystems* 4 Amp Isolated Relay Output modules, provide eight normally
open relay circuits for controlling output loads. The output switching capacity of each circuit is 4 Amps. Each
output point is isolated from the other points, and each point has a separate common power output terminal.
The relay outputs can control a wide range of output devices, such as motor starters, solenoids, and indicators.
Individual numbered LEDs display the ON/OFF status of each output point. There are no fuses on this module. The red bands on
the label show that IC694MDL930 is a high-voltage module. This module can be installed in any I/O slot in a Series 90-30
or RX3i system. The user must supply the AC or DC power to operate the field devices connected to this module.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
| What is the GE IC694MDL930 used for? |
| The IC694MDL930 is used to provide analog voltage outputs in GE's Series 90-30 PLC system, allowing the PLC to control external devices and processes based on analog signals. |
| What is the output range of the IC694MDL930? |
| The module typically provides an output range of 0 to 10 volts or ±10 volts, depending on the configuration and application requirements. |
| How many output channels does the IC694MDL930 have? |
| The IC694MDL930 features 8 analog voltage output channels, enabling the control of multiple devices or processes simultaneously. |
| Is the IC694MDL930 compatible with other GE PLC systems? |
| It is specifically designed for use with the GE Series 90-30 PLC system. Compatibility with other GE PLC systems may require additional considerations. |
| What are the key features of the IC694MDL930? |
| Key features include high accuracy, stability in voltage output, ease of integration with the Series 90-30 PLC, and support for various industrial applications. |
