| Product module | 531X124MSDAJG2 |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.12KG |
| Production year | 2024 |
| country of origin | USA |
GE 531X124MSDAJG2 Suppression Board
Specification
| 531X124MSDAJG2 Suppression Board |
|
| Number of Channels | 12 |
| Thermocouple Types | E, J, K, S |
| Span | -8 mV to +45 mV |
| A/D Converter | 16-bit |
| Common Mode Voltage | +5 Volts |
| Normal Mode Rejection | 250mV |
| Microprocessor | AMD-K6 300 MHz |
| Operating temperature | -30 to 65 °C |
| Dimension | 12.8x8.2x6cm |
Funcrional Description
The 531X124MSDAJG2 is a smaller board component manufactured by GE to fit into their general purpose drive systems like the DC-300.

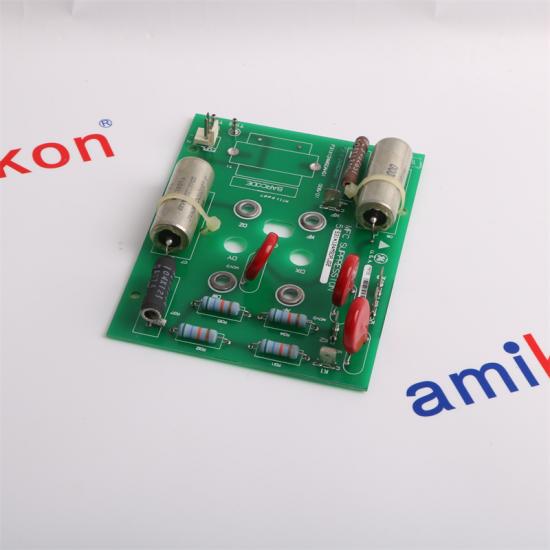

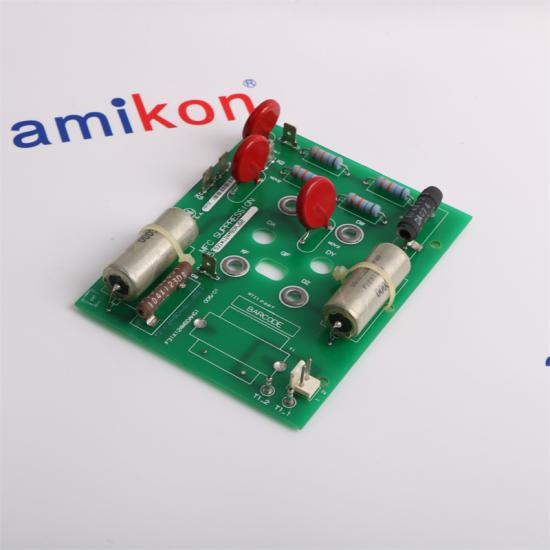

The 531X124MSDAJG2 is an MFC Suppression Board. This is only one of several versions of this board. The 531X124MSDAJG2 is
a small, rectangular board that is built with multiple cutouts and drill holes. The center of the board has four round cutouts that are
ringed with a conductive material; each of these is labeled as AF, DW, DZ, and KF. There are two additional round
cutouts and one oblong cutout. These are marked DX, DY, and GF.
The 531X124MSDAJG2 has three metal oxide varistors. MOVs are used for over-voltage protection from transient surges using
voltage-clamping, in the same way a Zener diode might. The board has four stab-on connectors that are located along the top
edge of the board. These are labeled K1 through K4. The board has a single two-pin header connector and
two terminal pin connectors. The terminal pin connectors are located in the bottom left corner.
Other components on the 531X124MSDAJG2 include two capacitors that each have a zip tie adding support and connection to the
board. It has two wire wound resistors. There are also four metal film resistors. The board has a single transformer.
This component uses surface wiring to connect to various other components on the board.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What is the purpose of the 531X124MSDAJG2 Suppression Board? |
| The 531X124MSDAJG2 Suppression Board is designed to protect industrial control systems from electrical noise and transient voltage spikes. It ensures the reliable operation of electronic components by filtering out unwanted electrical interference that could affect performance or cause damage. |
| What types of systems is the 531X124MSDAJG2 compatible with? |
| The 531X124MSDAJG2 Suppression Board is typically used with various industrial control systems and equipment that require protection against electrical noise and voltage transients. It is compatible with systems requiring robust electrical suppression to maintain operational integrity and reliability. |
| How is the 531X124MSDAJG2 Suppression Board installed? |
| The installation of the 531X124MSDAJG2 involves connecting the board to the designated points in the control system where suppression is needed. It usually fits into a standard mounting location within the system's control panel. Detailed installation instructions are provided by the manufacturer to ensure proper setup. |
| What maintenance is required for the 531X124MSDAJG2 Suppression Board? |
| The 531X124MSDAJG2 generally requires minimal maintenance. However, regular inspections should be conducted to ensure it remains securely mounted and free from physical damage or signs of wear. Periodic checks of the associated control system for any indications of electrical interference or anomalies are also recommended to confirm the board's effectiveness. |
