| Product module | IS220PTCCH1A |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.38KG |
| Production year | 2024 |
| country of origin | USA |

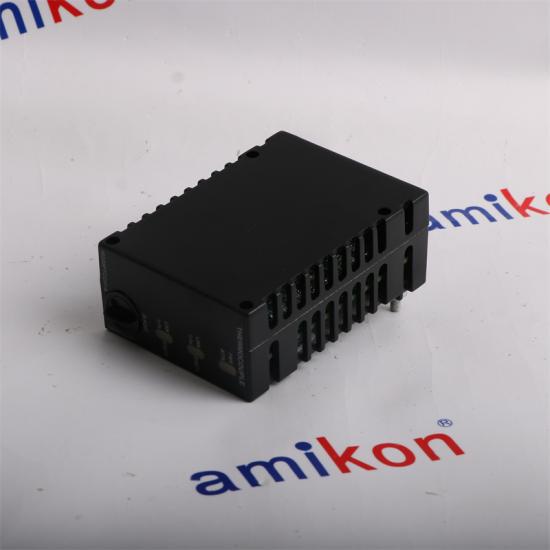

GE IS220PTCCH1A Thermocouple Input Module
Specification
| IS220PTCCH1A Thermocouple Input Module |
|
| Number of Channels | 12 |
| Thermocouple Types | E, J, K, S |
| Span | -8 mV to +45 mV |
| A/D Converter | 16-bit |
| Common Mode Voltage | +5 Volts |
| Normal Mode Rejection | 250mV |
| Microprocessor | AMD-K6 300 MHz |
| Operating temperature | -30 to 65 °C |
| Dimension | 12.8x8.2x6cm |
Funcrional Description
IS220PTCCH1A is a Thermocouple Input Module manufactured and designed by General Electric as part of the Mark VIe
Series used in GE Distributed Control Systems. The PTCC provides the electrical interface between one or two I/O Ethernet
networks and a thermocouple input terminal board. The pack contains a processor board common to all Mark VIe distributed I/O packs and an acquisition board
specific to the thermocouple input function. The pack is capable of handling up to 12 thermocouple inputs. Two packs can handle 24 inputs on
TBTCH1C. In the TMR configuration with the TBTCH1B terminal board, three packs are used with three cold junctions, but

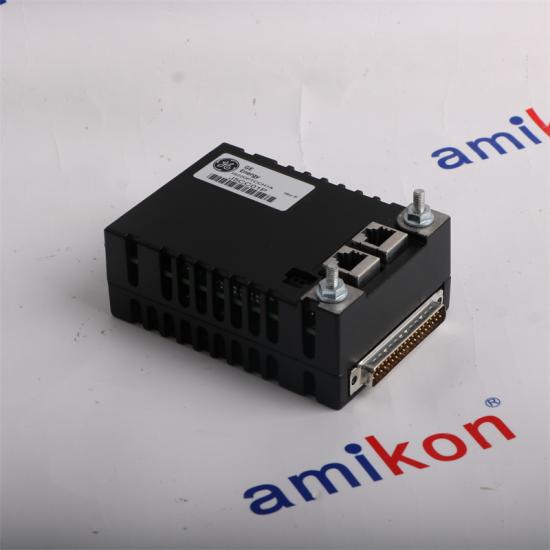

only 12 thermocouples are available. Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37
pin connector that mates directly with the associated terminal board connector. Visual diagnostics are provided
through indicator LEDs, and local diagnostic serial communications are possible through an infrared port.
INSTALLATION:
| • Securely install the desired terminal board. |
| •Directly connect the PTCC I/O pack to the terminal board connectors. |
| • Mechanically secure the packs to the threaded studs next to the Ethernet ports. The studs slip into a mounting bracket designed for the terminal board type. |
| • The bracket location should be changed such that there is no right-angle stress on the DC37 connector between the pack and the terminal board. The adjustment should be required just once during the product's lifetime. |
| • Connect one or two Ethernet wires, depending on the system configuration. The pack will work on either port. If twin connections are employed, it is common practice to link ENET1 to the network connected with the R controller. |
| • Plug in the connector on the pack's side to power it. It is not essential to turn off the power to the cable before connecting it because the I/O pack has an intrinsic soft-start feature that controls the current inrush on power applications. |
| •Use the ToolboxST application to set up the I/O pack as needed. |
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What is a thermocouple input module? |
| A thermocouple input module is a component used in control systems to interface with and measure temperature using thermocouple sensors. It typically converts the small voltage generated by the thermocouple into a usable digital signal for the control system. |
| What is the IS220PTCCH1A Thermocouple Input Module? |
| The IS220PTCCH1A is a thermocouple input module designed for use in industrial automation systems. It converts thermocouple signals into a digital format for processing by control systems, providing accurate temperature measurements. |
| What types of thermocouples does the IS220PTCCH1A support? |
| This module supports various types of thermocouples, including J, K, T, E, N, R, S, and B. Ensure that the module is configured to match the thermocouple type used in your application. |
| What maintenance is required for the IS220PTCCH1A? |
| Regular maintenance involves checking for secure connections, keeping the module free from dust and debris, and ensuring that the thermocouple connections are intact. Periodically review the module’s performance to ensure it continues to provide accurate measurements. |
