Product module | 745-W2-P5-G5-HI-R-E-H |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 7.48KG |
Production year | 2024 |
country of origin | USA |

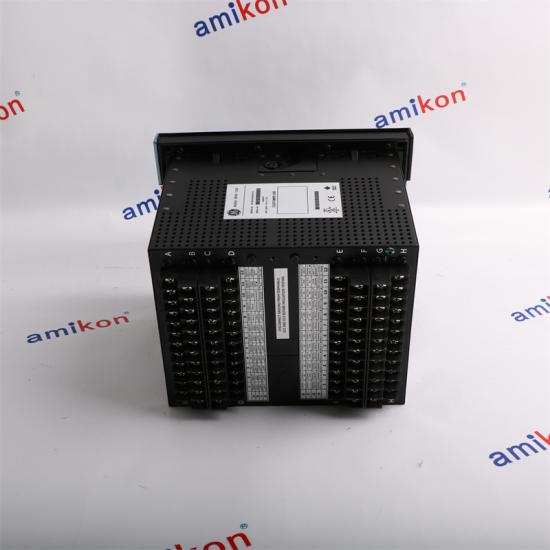

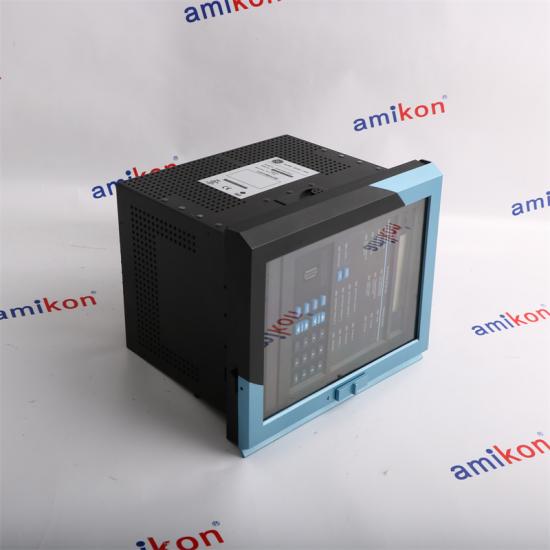

GE 745-W2-P5-G5-HI-R-E-H transformer management relay
Technical Specifications
745-W2-P5-G5-HI-R-E-H transformer management relay |
Part Number: 745-W2-P5-G5-HI-R-E-H |
Windings Per Phase:2 |
Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz |
Display Type:40 character Enhanced LCD |
Maximum Continuous Voltage Output;273 V |
Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA |
Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum |
Dimensions:21.6x23x25.5cm |
Funcrional Description
This enhanced model of General Electric Multilin’s 745 series is intended to manage and safeguard transformers, autotransformers,
and reactors. The 745-W2-P5-G5-HI-A-E-H employs adaptive features to respond to system events in real time. Some of these features include:
1.Dynamic CT Ratio Mismatch Correction
2.Overexcitation Protection
3.Transformer Overload Protection
4.Frequency Rate-of-Change Detection
These features help to extend system life by minimizing strain on transformer elements. Other features such as Hottest Spot
Monitoring can give users insight into potential issues before they worsen.
The relay’s Total Harmonic Distortion (THD) feature is able to calculate the amount of distortion present in system signals and reduce
unnecessary interference. Total Harmonic Distortion is calculated for each winding and then evaluated according to user settings (setpoints).
These calculations adhere to IEEE standards. The range of THD for this part is 0.00 to 99.9% and the accuracy is ±1% of full-scale at 0.5 × CT.
Equipped with a protective conformal coating, this model is well-suited for harsh operation environments. Conformal coating is a thin,
polymeric layer that guards the relay against environmental threats such as dust, temperature, humidity, abrasion, and chemicals.
This conformal coating is not a sealant, and will therefore allow moisture to dissipate and prevent it from remaining in the board.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 745-W2-P5-G5-HI-R-E-H
What is the primary function of the 745-W2-P5-G5-HI-R-E-H Transformer Management Relay? |
The 745-W2-P5-G5-HI-R-E-H Transformer Management Relay is designed to monitor and protect transformers in industrial systems. It provides essential functions for the management and safeguarding of transformer operations. |
What types of protection does this relay offer? |
This relay offers protection against faults, overloads, and other electrical disturbances, ensuring the transformer operates safely and efficiently.
|
What environments is this relay suitable for? |
It is suitable for demanding industrial environments that require reliable and durable performance. |
How does the relay integrate with existing control systems? |
The relay supports various communication protocols, allowing for easy integration with existing control systems for effective transformer management. |
