| Product module | DS200DSPCH1ADA |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.48KG |
| Production year | 2024 |
| country of origin | USA |
GE DS200DSPCH1ADA Digital Signal Processor Control Board
Features
| DS200DSPCH1ADA Digital Signal Processor Control Board |
| Series : Mark V |
| Functional Part Number DS200DSPCH1ADA |
| Functional Acronym DSPC |
| Revision Quantity 3 Revisions |
| Backwards-Compatibility 1st two revisions |
| Assembly Type Normal Assembly |
| Dimensions：4x18.6x26.1cm |
Details

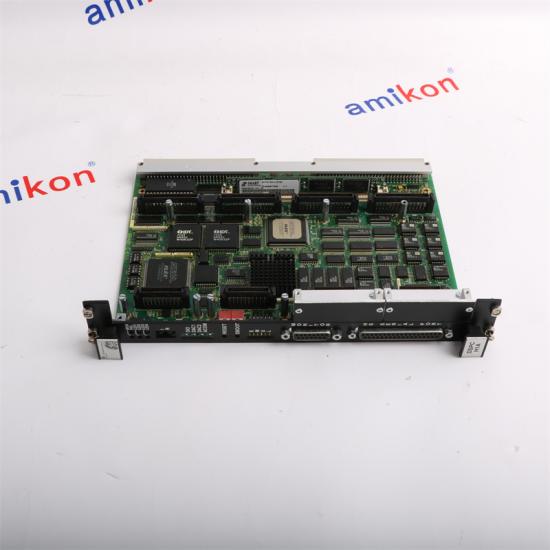

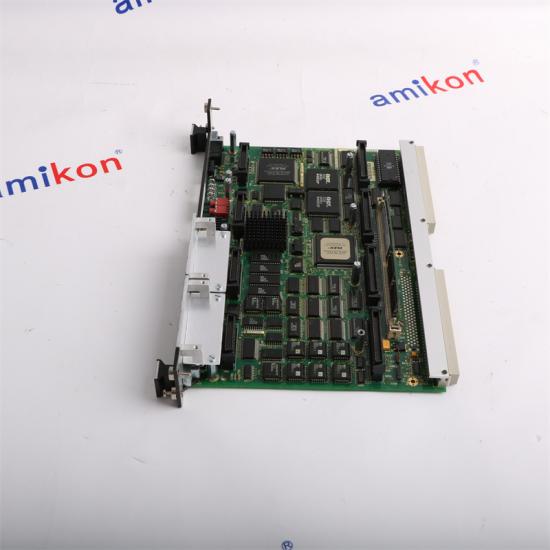

The DS200DSPCH1ADA is a complex circuit board with multiple daughter boards. Given this DS200DSPCH1ADA product
offering's possession, it is something of an anomaly that its DS200DSPCH1ADA functional product number makes no
mention of a special Mark V Series assembly version, as other typical Mark V Series motherboards tend to do. One board is
mounted parallel to the board’s surface using standoffs and another is mounted vertically. One of these daughterboards is used
to provide scaling, buffering, isolation, and conditioning of signals in order to make them accessible and usable to the
DS200DSPCH1ADA’s digital signal processor. The DS200DSPCH1ADA has two backplane connectors on its rear edge.
The board is built with an attached front faceplate with several kinds of I/Os and with LED indicators. The faceplate also
has a reset button and two set screws (top and bottom) that help lock the board into place when it is installed into a rack
system. When replacing the board, please be sure all power has been removed from the drive first. Improper installation procedures
can result in personal injury. Each of the LED indicators in this DS200DSPCH1ADA printed circuit board product offering's assembly
has been attached to their own factory-printed nomenclature label referencing the DS200DSPCH1ADA instructional manual
attached above for identification purposes. Some of the specific LED indicators important to
the functional fault diagnosis capacities of this DS200DSPCH1ADA Board include:
The Green IMOK General Board Functionality Indicator
The Red FAIL VME Bus Failure Fault Condition Indicator
The Amber LED1 Indicator
The Amber LED2 Indicator
The Amber LED3 Indicator
The Amber LED4 Indicator
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
| What is the main function of the DS200DSPCH1ADA Digital Signal Processor Control Board? |
| The DS200DSPCH1ADA Digital Signal Processor (DSP) Control Board is primarily used for processing digital signals within a control system. It handles complex computations, signal processing, and control algorithms to ensure accurate and efficient system performance. |
| How does the DS200DSPCH1ADA board integrate with other components in a control system? |
| The DS200DSPCH1ADA board is designed to work in conjunction with other boards and modules within a control system. It typically communicates with other components via a backplane or dedicated connectors, ensuring seamless data flow and control signal processing. |
| What are the typical applications for the DS200DSPCH1ADA board? |
| The DS200DSPCH1ADA board is commonly used in industrial automation, power generation, and process control systems. Its ability to perform high-speed digital signal processing makes it suitable for applications requiring real-time control and monitoring. |
| What should I do if the DS200DSPCH1ADA board fails or malfunctions? |
| If the DS200DSPCH1ADA board fails, first check all connections to ensure they are secure and properly connected. Power cycle the system to see if the issue resolves. If the problem persists, consult the user manual for troubleshooting steps or contact technical support for assistance. |
