| Product module | DS200TCQCG1BJF |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.46KG |
| Production year | 2024 |
| country of origin | USA |

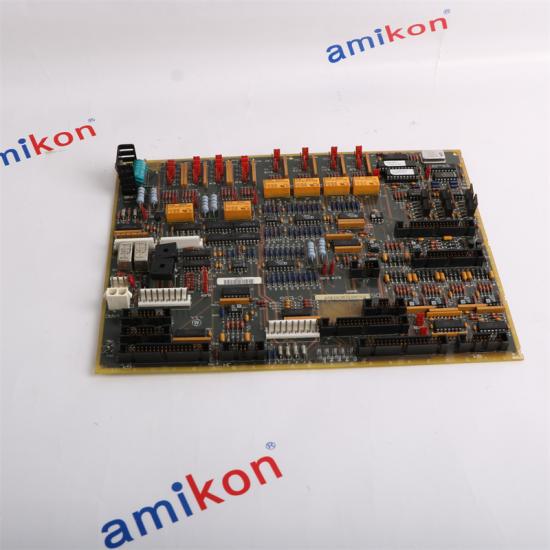

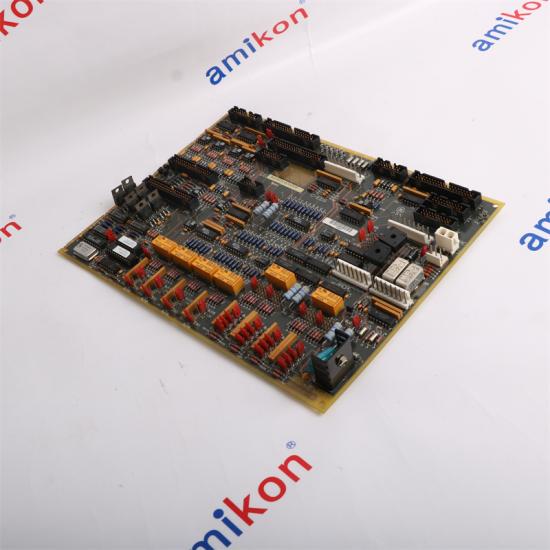

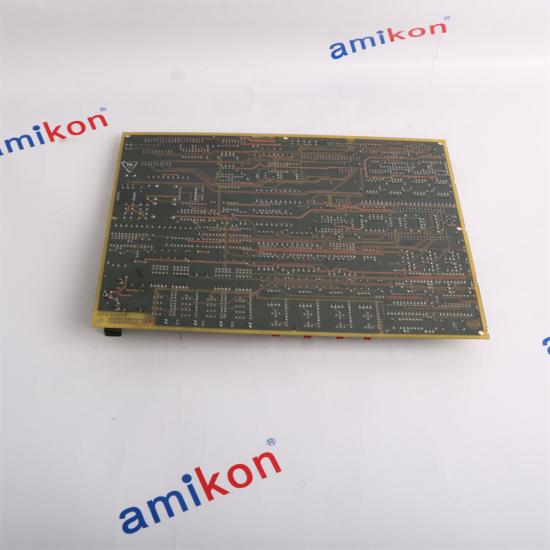

GE DS200TCQCG1BJF Analog IO Expander Board
Features
| DS200TCQCG1BJF Analog IO Expander Board |
| Series : Mark V |
| Functional Abbreviation TCQC |
| Product Description：Analog IO Expander Board |
| 1st Functional Revision B |
| 2nd Functional Revision J |
| Artwork Revision F |
| Dimensions：28x21.3x3.5cm |
Details
As with any Mark V Series product offering, this DS200TCQCG1BJF Analog IO Expander Board necessitates the
inclusion of several unique and specific hardware components and component specifications in its internal assembly; the first of which being its
three product revisions. Two of these three revisions are aimed towards bettering the general functionality and performance specifications
of the DS200TCQCG1 parent printed circuit board, while the third is for aesthetic and durability purposes.
The GE RST Overflow Board DS200TCQCG1BJF is populated with 24 jumpers and 3 40-pin connectors. It also has 3 34-pin
connectors and 1 16-pin connector. Each individual hardware element in the assembly of this Analog IO Expander Board is
accompanied by an individual reference designator ID. The ID assigned to the 16-pin connector is JC. The IDs assigned to the
40-pin connectors are JFF, JE, and 6PL. The GE RST Overflow Board DS200TCQCG1BJF also contains several relays that
switch circuits on the board on and off. The relays require no maintenance and are soldered to the board with leads. The IDs of the
34-pin connectors are JFF, 1PL, and JA. The 40-pin connectors and 34-pin connectors attach to ribbon cables that connect the Analog
IO Expander Board DS200TCQCG1BJF to other boards and components in the drive. When you replace the board it is important to the
maintain the cable routing that is arranged in the drive for the cables. Because the ribbon cables carry signals improper routing can introduce
interference from power cables that are routed too close to the signal cables. Interference happens when signal and power cables are routed parallel
to each other, so generally, it is best keep them separated. If they must come in contact to each other, have them cross each other at a 90 degree angle only.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
| What is the primary function of the DS200TCQCG1BJF Analog I/O Expander Board? |
| The DS200TCQCG1BJF Analog I/O Expander Board is designed to extend the input and output capabilities of a control system by providing additional analog I/O channels. This allows the system to interface with more sensors and actuators, enhancing its overall functionality. |
| How many analog input and output channels does the DS200TCQCG1BJF board support? |
| The exact number of analog input and output channels supported by the DS200TCQCG1BJF board can vary depending on the system configuration. However, it is generally equipped with multiple channels to accommodate a wide range of analog devices. |
| What types of analog signals can the DS200TCQCG1BJF board handle? |
| The DS200TCQCG1BJF board is capable of handling various analog signals, including standard voltage and current signals such as 0-10V or 4-20mA, making it suitable for interfacing with a wide variety of analog sensors and devices. |
| Is the DS200TCQCG1BJF board compatible with all control systems? |
| The DS200TCQCG1BJF board is typically designed for compatibility with specific GE control systems. It is important to verify compatibility with your particular system before installation. |
