| Product module | DS200PTBAG1BBA |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.3KG |
| Production year | 2024 |
| country of origin | USA |
GE DS200PTBAG1BBA Protection Termination Module
Module Description
| DS200PTBAG1BBA Protection Termination Module |
|
Part Number： DS200PTBAG1BBA |
|
Protection Function: Provides protection for signal and power connections. |
|
High Durability: Designed to withstand industrial environments. |
|
Reliable Performance: Ensures stable operation and minimizes signal loss. |
|
Ease of Installation: Facilitates straightforward installation and connection. |
|
Robust Construction: Built to handle high voltage and electrical stress. |
|
Dimensions：28.6x7x3.5cm |
Funcrional Description

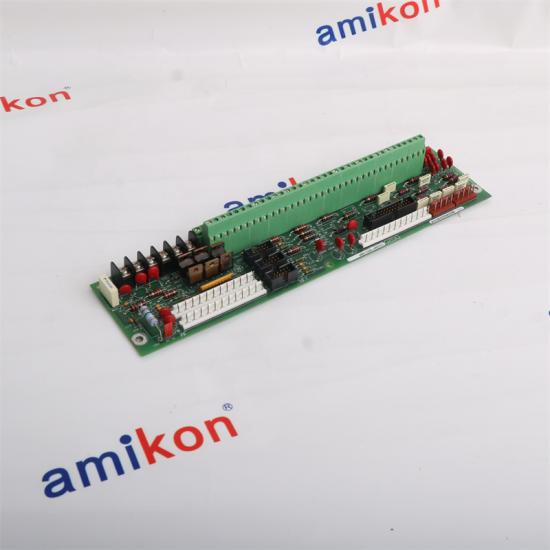

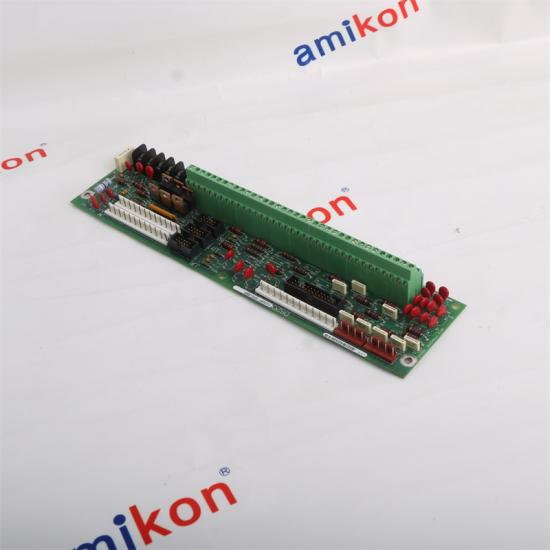

The DS200PTBAG1BBA is a multi-input and output termination board. The board is significantly longer than
it is wide, and is built with multiple input and output connectors.This includes four vertical pin header connectors,
vertical pin connectors, a termination board with six screw connections, and a double termination board (green).
These screw connectors are numbered from one to 79. The board also has metal oxide varistors, capacitors,
resistors, and jumper switches. Factory drill holes are located in each corner of the board. Two of these holes are ringed with
a conductive material. Additionally, the board is marked with the board ID number, coding to help with wiring and location,
as well as codes to help with connections to other boards within the system. It also carries the GE logo. The board weighs
approximately 1.0 pounds before the addition of internal and external boxing used for shipping. We also use static-reducing wrapping
to protect static-sensitive products from any damage during transit. The DS200PTBAG1BBA typically acts as a termination
board for the independent protective module core, offering overspeed protection and flame detection.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About DS200PTBAG1BBA
| What is DS200PTBAG1BBA? |
|
DS200PTBAG1BBA is a terminal board under Mark V series GE. |
| What is the function of DS200PTBAG1BBA? |
|
DS200PTBAG1BBA functions as a multi-input and output termination board for Mark V.
|
| What maintenance does the DS200PTBAG1BBA Terminal Board require? |
|
Regular maintenance includes inspecting connections for signs of wear or damage and ensuring the board is clean and free from debris. Periodically check the integrity of the wiring connections. |
