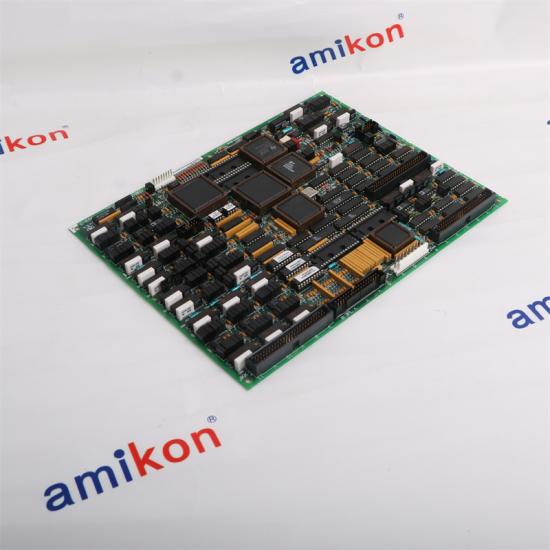

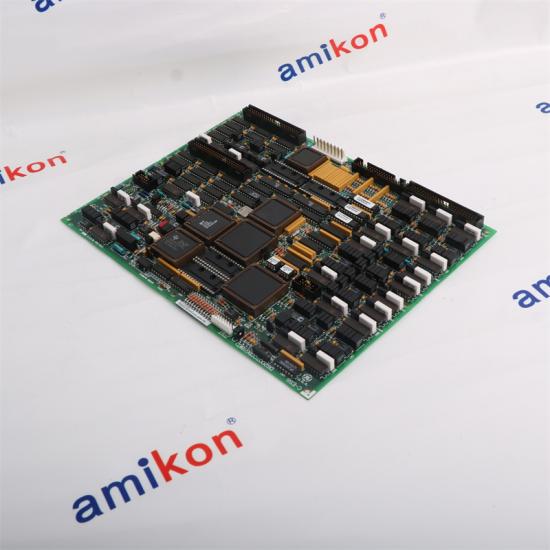

GE  DS200TCCBG1BED  Common Extended Analog I/O Board


 Module Description

  DS200TCCBG1BED  Common Extended Analog I/O Board

Part Number:DS200TCCBG1BED

Analog I/O Support: Provides extended analog input and output capabilities.

High Precision: Delivers accurate and reliable analog signal processing.

Versatile Compatibility: Compatible with various control systems.

Robust Design: Built to endure industrial conditions.

asy Integration: Simplifies integration into existing systems.

Dimensions:28x21.2x1.8cm



Funcrional  Description

This DS200TCCBG1BED Mark V Serie's Common Extended Analog IO Board functionality is introduced through its

internal assembly's acceptance of a specific series of hardware components and component specifications. The GE I/O

TC2000 Analog Board DS200TCCBG1BED  features one 80196 microprocessor and multiple PROM modules. It also contains

one LED and 2 50-pin connectors. The LED is visible from the side view of the board. The IDs for the 50-pin connectors are

JCC and JDD. The microprocessor uses the processing instructions and firmware on the PROM modules. Further programming

or firmware updates are not necessary when you install the replacement board. All that is necessary is to move the PROM

modules from the old board to the sockets on the replacement board. In that way, you can resume drive activity and know

that processing will be the same. Five total manually-moveable hardware jumpers have been adopted into the assembly of this

 DS200TCCBG1BED product offering; their specific factory-printed nomenclature labels and applications are include in the

DS200TCCBG1BED instructional manual attached in the manuals tab for your convenience. For example, this DS200TCCBG1BED

PCB's J14-labeled jumper is utilized to establish a conenction between the RS232 serial port and the DCOM port within this

DS200TCCBG1BED product's greater Mark V Turbine Control System Series' automated drive assembly.

Email :sales@amikon.cn

Skype :miyazheng520

Phone/WhatsApp : 86-18020776792

Frequently  Asked Questions About  DS200TCCBG1BED



What are hardware jumpers J1-J5 used for on DS200TCCBG1BED?

Hardware jumpers J1-J5 on DS200TCCBG1BED are used to provide the generator and bus voltage monitoring functions and the line current monitoring function

in the Mark V LM.

What circuits does DS200TCCBG1BED have?
DS200TCCBG1BED has a 4-20 mA input circuit and DS200TCCBG1BED has an RTD circuit. For information on DS200TCCBG1BED's circuitry, view chapter
4 in Manual GEH-6153, the Mark V LM Turbine Control Function Manual.
How many connectors does DS200TCCBG1BED have?

DS200TCCBG1BED has 8 connectors but 3 of DS200TCCBG1BED's connectors are typically not used. The connectors that are used on DS200TCCBG1BED

include: 2PL, 3PL, JHH, JII, and JMP.
