Product module | DS200SDCCG1AGD DS215SDCCG1AZZ01B |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 0.58KG |
Production year | 2024 |
country of origin | USA |

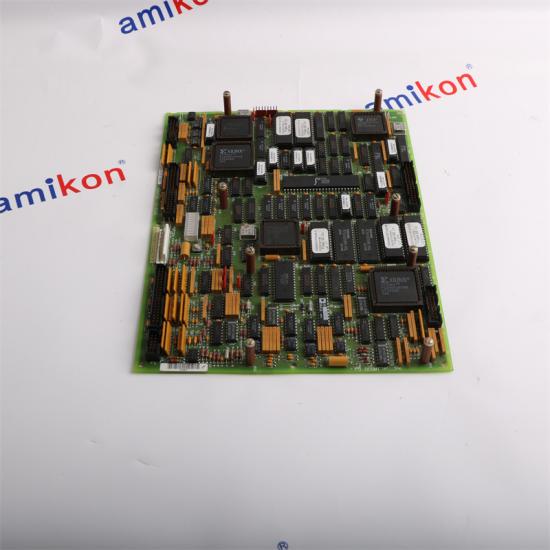

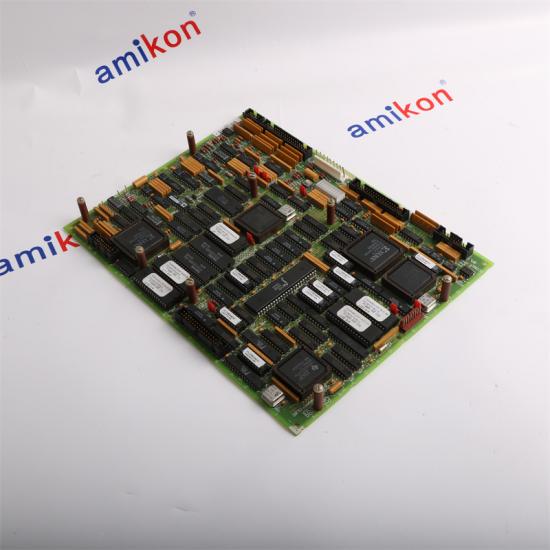

GE DS200SDCCG1AGD DS215SDCCG1AZZ01B Drive Control Board
Specification
IC200CPU005 CPU Module Processor |
Part Number: DS200SDCCG1AGD DS215SDCCG1AZZ01B |
Series: Mark V |
Product type: Drive Control Card |
Microcontroller: 80C196 |
Digital signal processor: TMS320C25 |
Software suite: ST2000 |
LEDs: 10 |
Dimensions:28x21.2x3cm |
Funcrional Description
DS200SDCCG1AGD DS215SDCCG1AZZ01B is a Drive Control Card designed and developed by GE. It is a part of Mark V control system.
The product contains the primary control circuitry and software for a drive or exciter. It consists of three 16-bit microprocessors
and associated circuits coupled via dual-ported RAM. The component also has interface circuitry that joins with other boards to
provide various ac and dc motor drive configurations. The interface circuitry regulates, processes and controls drive, motor, and
customer I/O signals. The system is completely programmable turbine control system made to handle the complicated, dynamic
behavior of steam and gas turbines in the modern power generation industry. It is a modular control system that offers cutting-edge
management, supervision, and security. In addition to robust monitoring capabilities and various built-in features that automatically protect the
turbine-generator from a range of abnormal operating events, such as overspeed, oil loss,
and overheating, this gives operators instant access to all key control operations.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About DS200SDCCG1AGD DS215SDCCG1AZZ01B
What is DS215SDCCG1AZZ01B? |
It is a Drive Control Card developed by GE |
How many microprocessors are there on the SDCC? |
There are three 16-bit microprocessors on the SDCC, along with associated circuits coupled via dual-ported RAM. |
What is the function of the interface circuitry? |
The interface circuitry on the SDCC regulates, processes, and controls drive, motor, and customer I/O signals. It joins with other boards to provide various ac and dc motor drive configurations. |
What is the ST2000 software suite? |
It is a DOS-based software suite used to configure GE DIRECTO-MATIC 2000 control equipment. It is used to configure and monitor the control equipment and can be used to perform various functions such as diagnostics, tuning, and calibration. |
