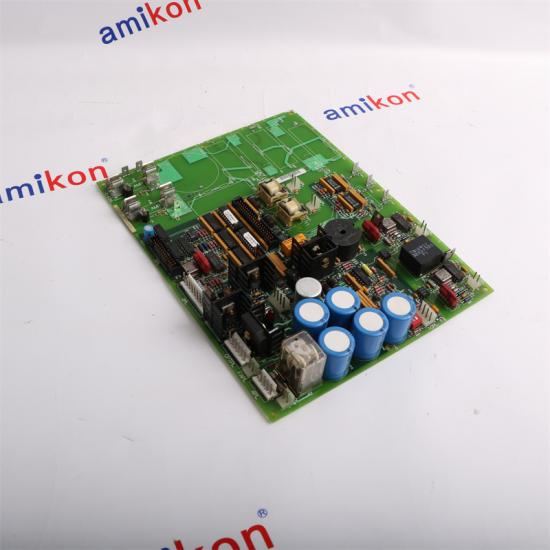

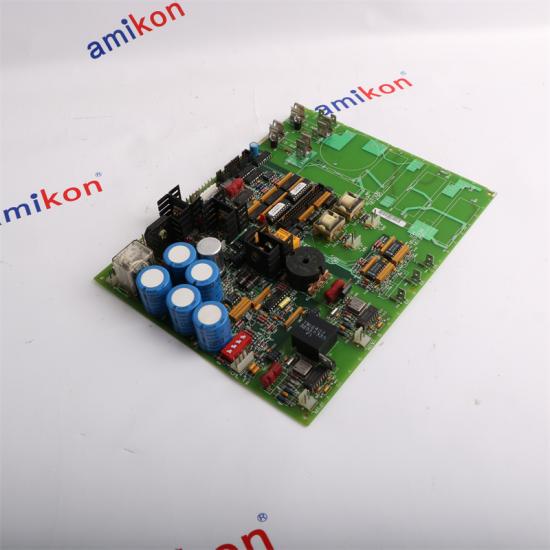

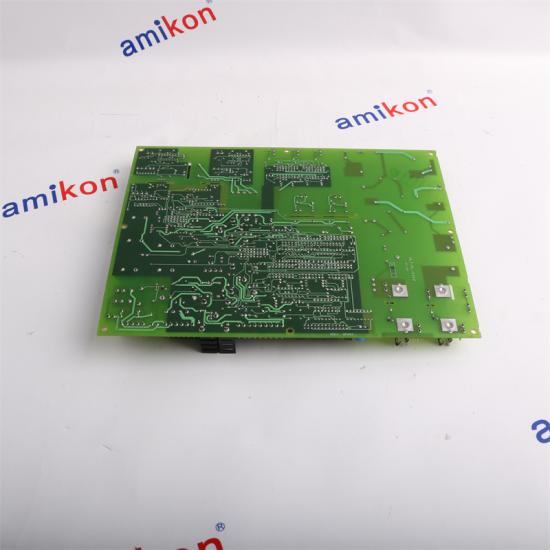

GENERAL ELECTRIC DS200SDCIG2ABA POWER SUPPLY CONTROL BOARD

Part Number:  DS200SDCIG2ABA

both ac and dc type snubbers

a C or G style of frame

power supply board SDCI compatibility

<600 V rms AC volts

separate or common bus transformer compatibility

Dimensions:27.8x21.2x4cm

On a DS200PCCAG7ACB board, jumpers JP1 and JP2 must be connected to the appropriate stab terminals P3-P10, which for DS200PCCAG7ACB are stabs

P1, P1A, P1B, P2, P2A, P2B, P3-P10, DCS, and 1ACS-6ACS.

Spin the motor manually and look for signs of damage and that the motor spins freely. Spin the motor in reverse also. Use a wrench to tighten all the bolts that

hold the motor down.

Pin 5PL-1 on DS200PCCAG7ACB is identified by a A6F nomenclature on DS200PCCAG7ACB. This connector for DS200PCCAG7ACB drives cell 6F gate

pulse transformer for DS200PCCAG7ACB.
