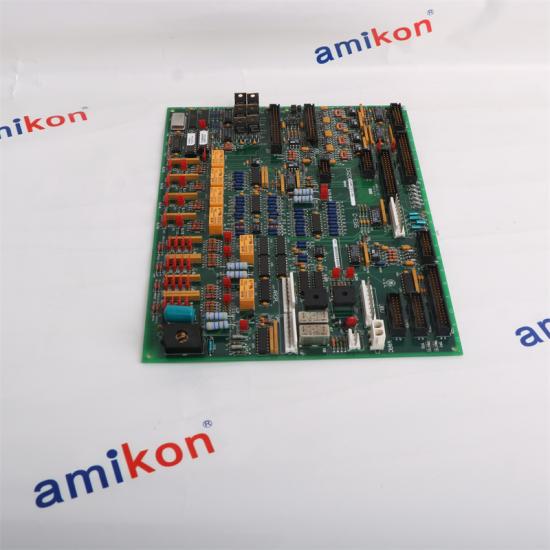

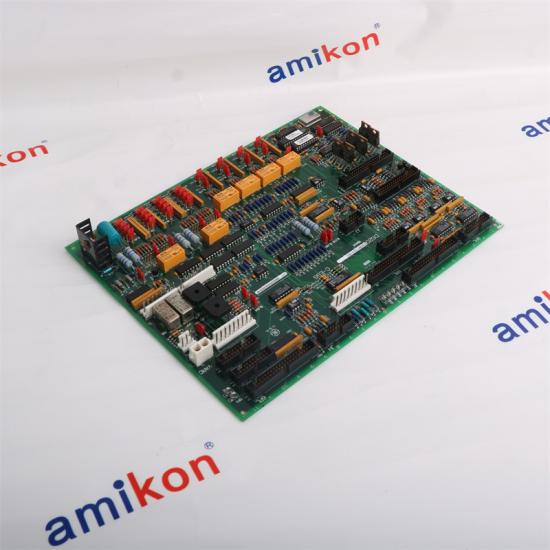

GE DS200TCQCG1BKG Analog IO Expander Board
Module Description
DS200TCQCG1BKG Analog IO Expander Board |
Part Number:DS200TCQCG1BKG |
Number of Channels: 16 channels |
Input Voltage Range: 0 to 5V |
Number of Channels: 2 channels for DAC |
Power Requirements: +5 V dc |
Manual: GEH-6153 |
Dimensions:28x21.2x3.5cm |
Funcrional Description
DS200TCQCG1BKG is an Analog IO Expander Board manufactured and designed by General Electric as part of the LM2500
Series used in GE Aeroderivative Gas Turbine Control Systems. The Analog IO Expander board (TCQC) provides scaling and
conditioning for additional analog signals read from the terminal boards of the I/O cores. The TCQC board provides LVDT and
LVDR excitation. The IONET termination for and is on the TCQC board in the core. If the optional <21> is installed, that
IONET termination is on the TCQC in . The mA input for the megawatt transducer signal is scaled and conditioned on the
TCQC board and written to the STCA board via the 19PL connector. Pulse rate inputs are scaled and conditioned on the TCQC
board. In most applications, the high-pressure shaft speed signals and occasionally the liquid fuel flow signals are scaled on the
TCQC board and written to the TCQA board via the JE connector in the core. The TCQC board communicates
the generator and line signals with the STCA board via the JE connector. The high-pressure shaft pulse rate
signals are read from the TCQE board via the JJ connector. The TCQE board signals originateon the PTBA board in the core.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About DS200TCQCG1BKG
What is the primary function of the DS200TCQCG1BKG? |
The DS200TCQCG1BKG Analog I/O Expander Board is used to expand the analog input and output capabilities in industrial control systems, allowing for the monitoring and control of various process variables such as temperature, pressure, and flow. |
How does this board integrate with existing systems? |
The DS200TCQCG1BKG is designed to seamlessly integrate with GE’s Mark V and VI control systems, providing additional analog I/O ports for expanded control and monitoring capabilities. |
What are the power requirements for this board? |
The DS200TCQCG1BKG typically shares the power supply with the main control system, and its specific voltage requirements are aligned with the system’s voltage specifications. |
Does this board support redundancy? |
Yes, the DS200TCQCG1BKG can be used with redundant control systems to enhance system reliability and fault tolerance. |
