Product module | IC755CSW07CDACA-CG |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 0.72KG |
Production year | 2024 |
country of origin | USA |

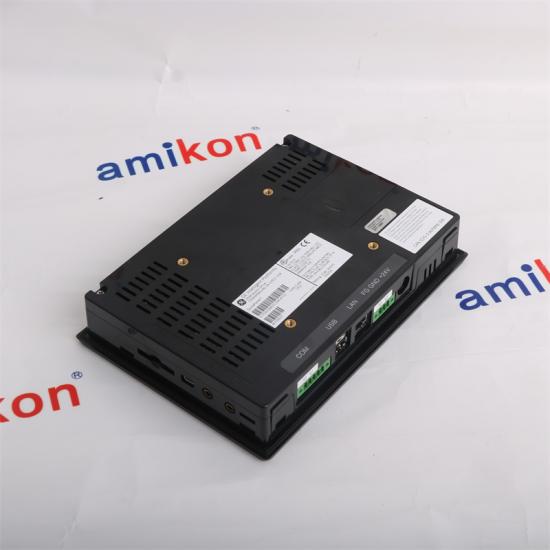

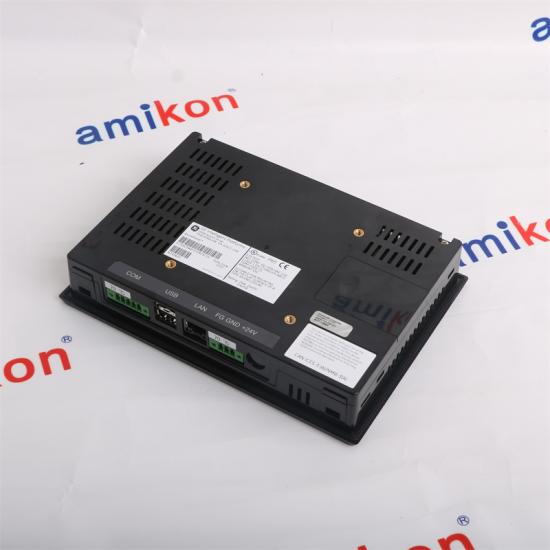

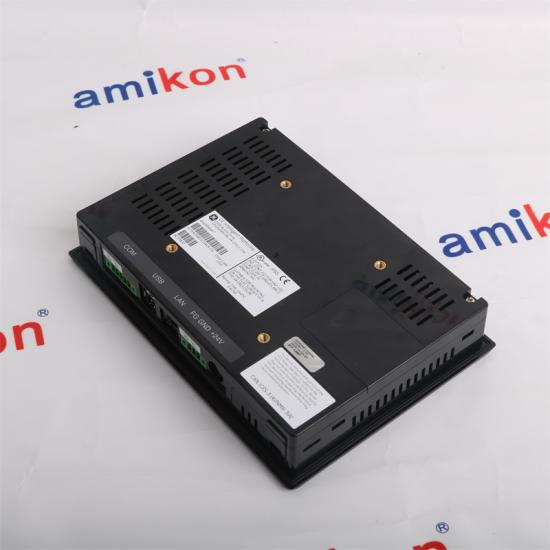

GE IC755CSW07CDACA-CG Quickpanel
Module Description
IC755CSW07CDACA-CG Quickpanel |
Part Number:IC755CSW07CDACA-CG |
Power Consumption:15 watts |
Temperature:0-55 degrees Celsius |
Power Supply:12 / 24 VDC |
Terminal memory:512 GB DDR2 SDRAM; 256 MB SLC NAND Flash; 512 KB SRAM |
Communication ports:One (1) Ethernet; One (1) RS232 |
Dimensions:19.2x13.7x3.6cm |
Funcrional Description
The IC755CSW07CDA is a QuickPanel+ operator terminal from Emerson automation. This device is popularly
termed as Human Machine Interface (HMI) or Operator Interface Terminal (OIT) by most personnel in the industry
as this electronic device is primarily used to provide real-time monitoring and control capability of the connected machine
or process through the embedded 7-inch widescreen display with resolution of 800 x 480 pixels and the multi-touch operator input
interface. In addition, this terminal is also capable of functioning as a controller, machine gateway and data historian. The
IC755CSW07CDA is an HMI device that supports panel mounting or VESA 75 installation. It requires an input supply voltage
of +24VDC ±20% terminated to the provided 3-pin Phoenix type connector. This device also has a maximum power consumption
of 15 Watts. It uses natural convection for device cooling and must be installed at an application area with temperature range of
0-55 Degrees Celsius and 85% relative humidity. The IC755CSW07CDA is pre-installed with an instance of Windows Compact
Embedded 7 Operating System (OS). This operating system provides a user-friendly configuration environment and provides
connectivity capabilities and terminal management features and tools. This HMI is installed with an Intel Freescale i.MX535 1 GHz
ARM Cortex A8 processor with integrated memories that is comprised of 512 MB DDR2 SDRAM, 256 MB SLC NAND Flash and 512 KB SRAM.
This HMI is provided with One (1) Ethernet I/P communication port and One (1) RS232 communication interfaces. It also has
Three (3) USB ports and One (1) SD SDHC removable card slot for memory expansion.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About IC755CSW07CDACA-CG
What is the primary function of the GE IC755CSW07CDACA-CG QuickPanel? |
The GE IC755CSW07CDACA-CG QuickPanel is an integrated operator interface designed for industrial automation applications, providing a touchscreen interface along with data monitoring and control functionalities. |
Does the QuickPanel support multiple communication protocols? |
Yes, the IC755CSW07CDACA-CG QuickPanel supports various industrial communication protocols, including Ethernet/IP, Modbus TCP/IP, and other common protocols, facilitating connection with multiple devices. |
How is this device installed? |
The QuickPanel is designed for easy installation, and it can be mounted using standard panel mount or bracket mount methods. Detailed installation instructions can be found in the user manual. |
Does this device support user-customizable interfaces? |
Yes, users can customize the operator interface using GE's software tools to meet specific application requirements. |
