Product module | DS3800HIOD1H1G |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 0.24KG |
Production year | 2024 |
country of origin | USA |
GE DS3800HIOD1H1G DIGITAL I/O BOARD
Specification
DS3800HIOD1H1G DIGITAL I/O BOARD |
|
jumpers | 6 |
10-pin connectors | 2 |
40-pin connector | 1 |
Function | Line Driver |
Availability | In Stock |
Dimension | 19.2x23.3x2cm |
Details

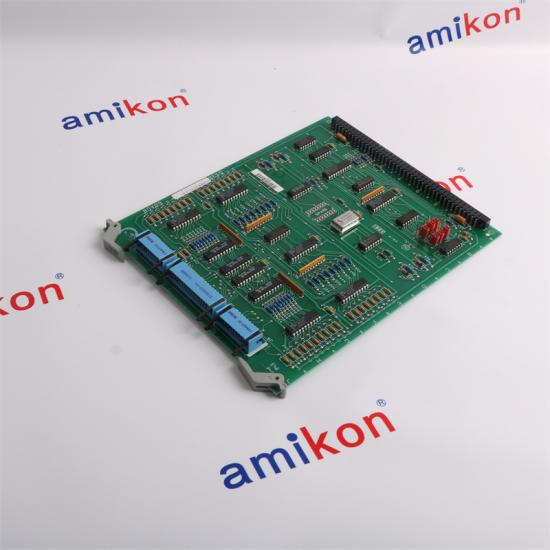

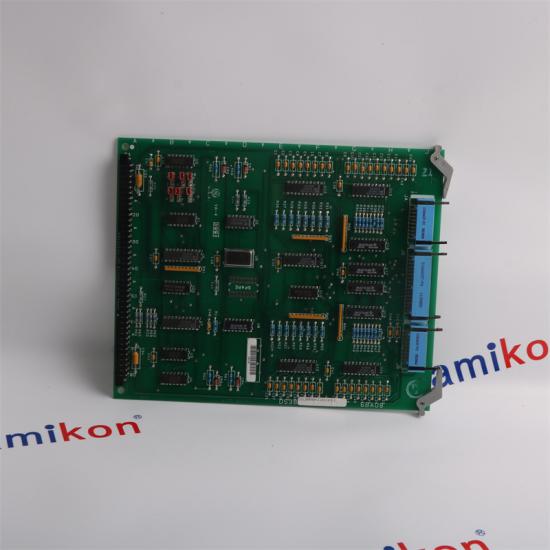

DS3800HIOD1H1G is a Digital I/O Board manufactured by General Electric and it's a part of the Speedtronic
Mark IV Series used for gas turbine control systems. The DS3800HIOD1H1G Digital I/O Board is designed for
easy installation in the drive. On one end, the board has a modular connector, while on the other, it has retention levels. Two 10-pin
connectors and one 40-pin connector are positioned between the retention levers on the GE Digital I/O Board, making them
accessible from the front of the board. There are also six jumpers on it. It is sensitive to static electricity build-up.
You can prevent static from entering the board by taking appropriate precautions. To begin, the board is packaged in a sealed static protection container and shipped to you.
To handle the board, use a static protective wrist strap. Wrap one end of the strap over your wrist or arm. The cord's opposite end features a clip that can be fastened to a metal chair, post, or another metal item
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
What is the DS3800HIOD1H1G? |
The DS3800HIOD1H1G is a Digital I/O Board, primarily used in industrial control systems for managing digital input and output signals. |
What are the main functions of the DS3800HIOD1H1G? |
The main functions of the DS3800HIOD1H1G include processing digital signals, interfacing with external devices such as sensors and actuators, and facilitating communication between the control system and other components. |
What types of signals does the DS3800HIOD1H1G handle? |
The DS3800HIOD1H1G handles digital signals, typically in the form of binary data (0s and 1s), which are used to represent on/off states or other discrete conditions in a system. |
How is the DS3800HIOD1H1G connected within a system? |
The DS3800HIOD1H1G is typically installed in a control system rack or chassis and connected to the system’s main processor or controller via a backplane. It interfaces with external devices through terminal blocks or connectors on the board. |
