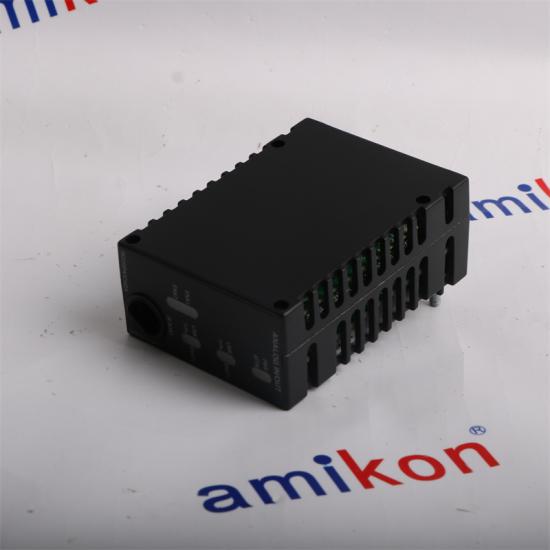

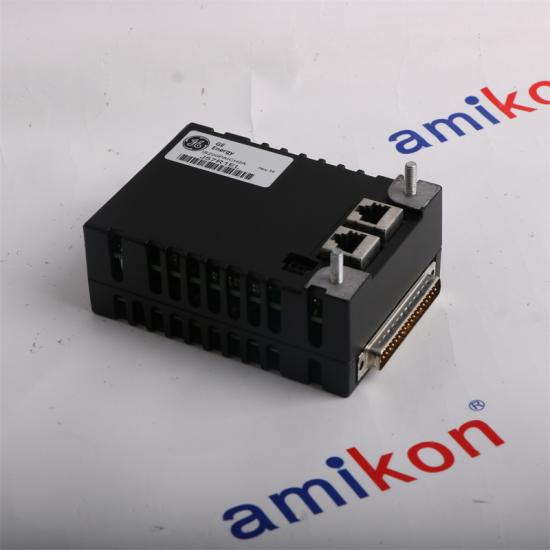

GE IS220PAICH2A Analog I/O Module
Specification
IS220PAICH2A Analog I/O Module |
|
current loop inputs | 5 V or 10 V or 4-20 mA |
current loop outputs ranging | 0 to 20 mA |
Manufacturer | General Electric |
Product Type | Analog I/O Module |
Availability | In Stock |
Dimension | 12.8x8.2x6cm |
Details
IS220PAICH2A is an analog I/O module developed by General Electric. It is a part of the Mark VIe Speedtronic control system.
This I/O pack is directly attached to the terminal board. The I/O pack is connected to the simplex terminal board via a single DC-37 pin connector.
If only one I/O pack is installed, the TMR-capable terminal board has three DC-37 pin connectors and can be
used in simplex mode. All of these connections are directly supported by the I/O pack.
Functional Description
-The Analog I/O pack (PAIC) is an electrical interface that connects one or two I/O Ethernet networks to an analog input terminal board. The PAIC includes a
BPPx processor board as well as an acquisition board dedicated to the analog I/O function.
-The module has ten analog inputs. The first eight inputs can be set to 5 V or 10 V or 4-20 mA current loop inputs.
The final two inputs can be set to 1 mA or 4-20 mA current inputs.
-The load terminal resistors for current loop inputs are located on the terminal board, and the PAIC senses voltage across these resistors. PAICH2 has two
current loop outputs ranging from 0 to 20 mA. It also includes additional hardware that allows for 0-200 mA current on the first output only.
-The I/O pack receives and sends data to the controller via dual RJ-45 Ethernet connectors and is powered by a three-pin connector. Field devices are
communicated with via a DC-37 pin connector that connects directly to the associated terminal board. LED indicator lights provide visual diagnostics.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
What type of module is the IS220PAICH2A? |
The IS220PAICH2A is an analog I/O module primarily used in industrial automation and control systems, providing analog signal input and output functions.. |
What types of input signals does the IS220PAICH2A support? |
The IS220PAICH2A module supports various types of analog input signals, including voltage and current inputs. Common input signal ranges include 0-5V, 1-5V, 0-10V, and 4-20mA current input. |
What are the main applications of the IS220PAICH2A? |
The IS220PAICH2A is mainly used in process control systems to collect and process various analog signals, such as signals from temperature, pressure, and flow sensors, and convert them into digital signals for system processing. |
How does the IS220PAICH2A connect to other devices? |
The IS220PAICH2A module typically connects to the system's main unit or PLC through a backplane and integrates with other I/O modules within the same system. Its input and output ports connect to external sensors or actuators via terminal blocks. |
