Product module | IS200DAMCG1A IS200DAMCG1ACB |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 0.08KG |
Production year | 2024 |
country of origin | USA |
GE IS200DAMCG1A IS200DAMCG1ACB Gate Drive Amplifier
Key Benefits
IS200DAMCG1A IS200DAMCG1ACB Gate Drive Amplifier |
Part Number: IS200DAMCG1A IS200DAMCG1ACB |
Function: Gate Drive Amplifier board |
Series: Drive Control |
Frame Rate: 250 |
Powerrex IGBT: CM400HA-28H |
LED: four |
Dimensions:22.8x6.6x2.2cm |
Funcrional Description

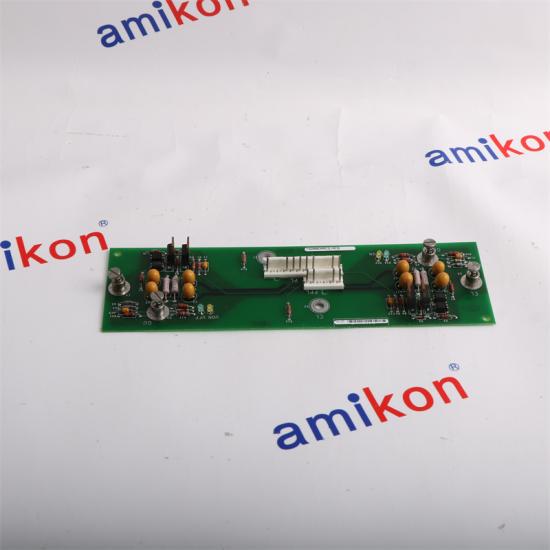

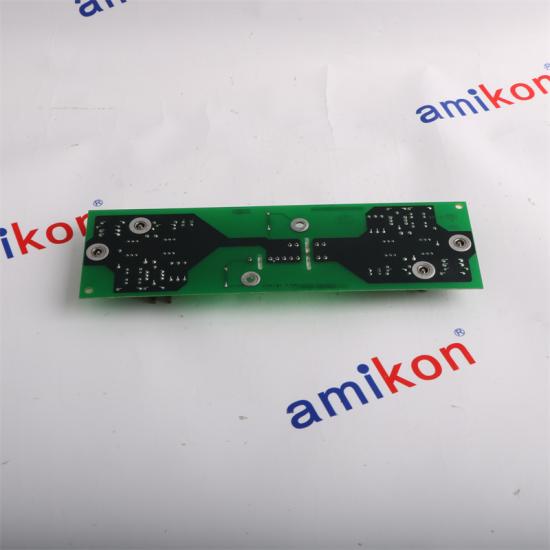

The IS200DAMCG1A is a type of printed circuit board or PCB. This board is what is known as an Innovation Series
200DAM Gate Drive Amplifier and Interface board. These boards are used as an interface between the devices which
are in charge of switching power (IGBTs) and the control rack in a low voltage Innovation Series drive.
These devices have LEDs or light-emitting diodes which tell an operator if the IGBT is on. The DAMC is one of the
variations of the DAM gate drive boards. The DAMC boards have a power rating of 250 frames. DAMC boards, as
well as DAMB and DAMA boards, are responsible for amplifying current in order to provide the final stage of gate
drive for a phase leg of the power bridge. These boards have a +15/-7.5 input of power supply. DAMC boards are
connected directly into the IGBT gate, as well as collector and emitter terminals. DAMC boards are also connected
into the IS200BPIA Bridge Personality Interface or BPIA board of the control rack. Four (4) different LEDs or
light-emitting diodes are positioned on the IS200DAMCG1A. Two (2) of these, named DS1 and DS2, are yellow.
The other two (2), DS3 and DS4, are green in color. The IS200DAMCG1A is a small rectangular circuit board.
The DS4 and DS2 have been placed at the bottom of the left half of the PCB. These are also labeled with
the initials LFF and LON respectively. Near the top of the right half of the IS200DAMCG1A
are the DS1 and DS3 LEDs which are marked with the initials UON and UFF.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About IS200DAMCG1A IS200DAMCG1ACB
What is the primary function of the IS200DAMCG1A/IS200DAMCG1ACB Gate Drive Amplifier? |
The IS200DAMCG1A/IS200DAMCG1ACB Gate Drive Amplifier is designed to amplify gate drive signals for controlling power electronic devices like IGBTs (Insulated Gate Bipolar Transistors) in industrial systems. |
What types of devices are controlled by the IS200DAMCG1A/IS200DAMCG1ACB? |
This module primarily controls power electronic devices such as IGBTs, which are crucial components in industrial drives and converters. |
How does the IS200DAMCG1A/IS200DAMCG1ACB enhance system performance? |
The amplifier ensures precise control of gate signals, which enhances the switching performance of power devices, improving overall system efficiency and reliability. |
What are the installation requirements for the IS200DAMCG1A/IS200DAMCG1ACB? |
The module should be installed in a clean, controlled environment, following the manufacturer’s guidelines for mounting, wiring, and connection to the appropriate control system. |
