Product module | IS200VTURH2BAC |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 0.4KG |
Production year | 2024 |
country of origin | USA |

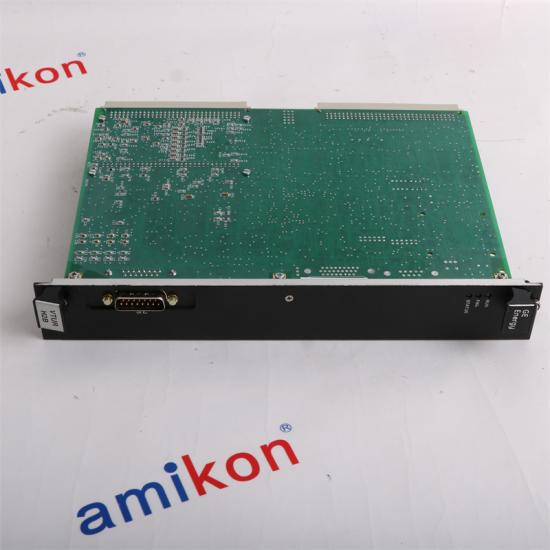

GE IS200VTURH2BAC Turbine Control System
Key Benefits
IS200VTURH2BAC Turbine Control System |
Part Number: IS200VTURH2BAC |
Board rating: 125 V dc |
Common Mode Voltage Range: ±5 V |
Operating temperature: 0 to 60 °C |
No.of Analog Voltage Inputs: 6 |
Country of Origin: United States |
Dimensions:4x18.6x26.1cm |
Funcrional Description
IS200VTURH2BAC is a Vibration Transducer Interface Module manufactured and designed by General Electric as
part of the VI Series used in GE Speedtronic Gas Turbine Control Systems. Turbine overspeed protection is
available in three levels, control, primary, and emergency. Control protection comes through closed-loop speed
control using the fuel/steam valves. Primary overspeed protection is provided by the controller. The TTUR
terminal board and VTUR I/O board bring in a shaft speed signal to each controller where they are median
selected. If the controller determines a trip condition, the controller sends the trip signal to the TRPG terminal
board through the VTUR I/O board. The three VTUR outputs are 2/3 voted in three-relay voting circuits (one for each
trip solenoid) and power is removed from the solenoids. The following figure shows the primary and emergency levels of protection.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About IS200VTURH2BAC
What is the main function of the IS200VTURH2BAC in a turbine control system? |
The IS200VTURH2BAC is designed to provide precise control and monitoring of turbine operations, ensuring safe and efficient turbine performance. |
What type of turbines is the IS200VTURH2BAC compatible with? |
The IS200VTURH2BAC is compatible with a wide range of industrial turbines, including gas, steam, and hydro turbines. |
ow does the IS200VTURH2BAC enhance turbine safety? |
The amplifier ensures precise control of gate signals, which enhances the switching performance of power devices, improving overall system efficiency and reliability. |
What are the installation requirements for the IS200DAMCG1A/IS200DAMCG1ACB? |
The module includes advanced safety features such as real-time diagnostics, fault detection, and automated shutdown capabilities to protect the turbine from potential damage. |
