YOKOGAWA SDV144-S53 S4 24VDC 300MA Digital Input Module

YOKOGAWA

SDV144-S53 S4

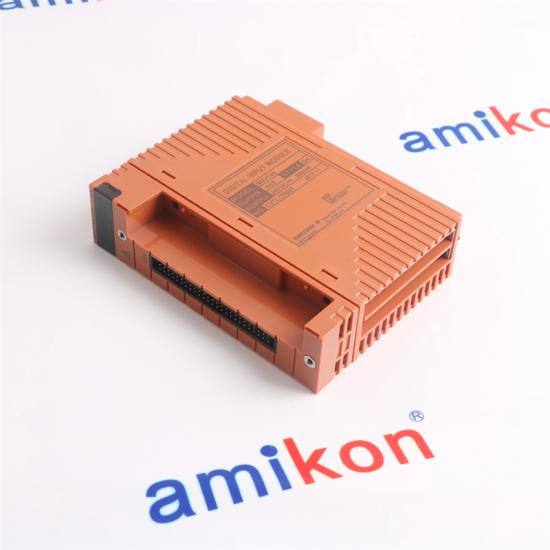

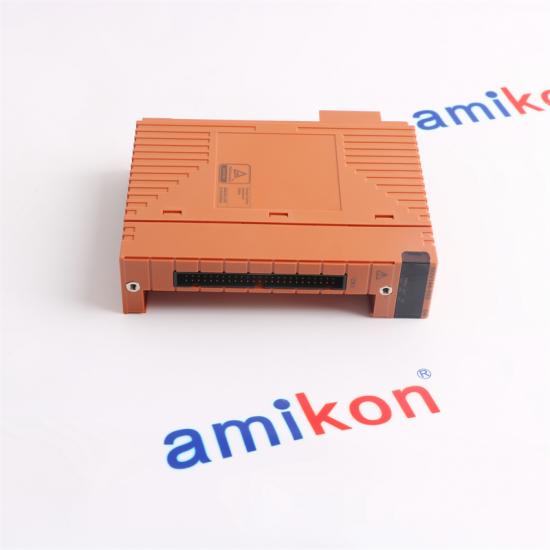

SDV144-S53 S4 24VDC 300MA Digital Input Module

(Series: CS3000 System CPU Controller Module, Analog Module,

Yokogawa Centum CS - Centum VP.)

Number of input: 16-channel, module isolation

Input current: 6 mA ± 20 % (External power supply, 24 V DC at 0 input)

Contact rating: 24 V DC +20 % / -10 % , 10 mA or greater

Input response time: 40 ms maximum)

-S = Standard type

5 = For pressure clamp terminal block or MIL cable with no explosion protection

3 = With ISA Standard G3 and temperature (-20 to 70 °C)

Append Information: 3.2x10.6x13cm

Weight: 0.340 kg

Why choose us? We have professional knowledge about SDV144-S53 S4

For more information, please contact Jessica at Amikon:

Mobile : 86-18030235311 | Email : sales3@amikon.cn

WeChat : hu18030235311 | Skype : jessica01235483

Yokogawa Centum CS - Centum VP are distributed control systems (DCS) developed by

Yokogawa Electric Corporation of Japan and are widely used in industrial process control.

Point Parameters: Point Type: Analog input (AI), analog output (AO), digital input (DI), digital output (DO), etc.

Control Parameters: Control Mode: The working mode of the controller, such as Auto, Manual, and Cascade.

Redundancy Parameters: Redundancy: The current status of a redundant controller or network, such as master or standby.

System Parameters: System Health Status: The health of system components, such as CPU load and memory usage.

Safety Parameters: Emergency Shutdown, ESD: Setting for emergency stop operation.

These parameters cover key configurations commonly used in Centum CS - Centum VP systems for process control,

monitoring, alarm management and system safety.
